TOYOSILICONE-P HOSE

Use

：

For factory equipment (such as filling machines, cooling devices and heat-generating equipment)

Fluid

：

Water (Non-drinkable), Powders, Oils (Animal and Vegetables), Food (Including Fats), Drinkable Water, Chemicals, Air

Function

：

Break Proof
Chemical Resistant
Cold Resistant
Flexible
Heat Resistant
Low Elusion
Low Odor
No Waste Sorting Required
Oil Resistant (Animal and Vegetables)
Pressure
Vacuum

Certifications

：

Food Compliancy no. 595
FDA Compliant
RoHS2 Compliant

Method

：

Primary Material: Silicon
Materials: Specialized PET resin
Diameter: 12.7mm~25.4mm
Temperature Range: -30℃ ~100℃
Oils (Animal and Vegetable)(under 70℃)

Available Options

SKU	Price	Quantity
TSIP-12	฿1,094.00	TOYOSILICONE-P HOSE quantity
TSIP-15	฿1,580.00	TOYOSILICONE-P HOSE quantity
TSIP-19	฿1,702.00	TOYOSILICONE-P HOSE quantity
TSIP-25	฿2,594.00	TOYOSILICONE-P HOSE quantity

Fluids (Hoses)

Beverage / Drinkable Water, Chemicals, Food, Pharmaceutical, Powders, Pure water

Method

Pressure, Vacuum

Functionality

Anti Condensation, Anti-bend and Crush Prevention, Flexible, Heat Resistant, Low Odor, Transparent

Material

Silicon Rubber

Highest Temperature

100

Lowest Temperature

-30

Available Options

SKU	Price	Quantity
TSIP-12	฿1,094.00	TOYOSILICONE-P HOSE quantity
TSIP-15	฿1,580.00	TOYOSILICONE-P HOSE quantity
TSIP-19	฿1,702.00	TOYOSILICONE-P HOSE quantity
TSIP-25	฿2,594.00	TOYOSILICONE-P HOSE quantity

Description

Use	：	For factory equipment (such as filling machines, cooling devices and heat-generating equipment)
Fluid	：	Water (Non-drinkable), Powders, Oils (Animal and Vegetables), Food (Including Fats), Drinkable Water, Chemicals, Air
Function	：	Break Proof Chemical Resistant Cold Resistant Flexible Heat Resistant Low Elusion Low Odor No Waste Sorting Required Oil Resistant (Animal and Vegetables) Pressure Vacuum
Certifications	：	Food Compliancy no. 595 FDA Compliant RoHS2 Compliant
Method	：	Primary Material: Silicon Materials: Specialized PET resin Diameter: 12.7mm~25.4mm Temperature Range: -30℃ ~100℃ Oils (Animal and Vegetable)(under 70℃)

Additional documents

TOYOSILICONE HOSE, HYBRID TOYOSILICONE HOSE, TOYOSILICONE-S HOSE, TOYOSILICONE-S2 HOSE, TOYOSILICONE-P HOSE Precautions for use

Available Options

SKU	Price	Quantity
TSIP-12	฿1,094.00	TOYOSILICONE-P HOSE quantity
TSIP-15	฿1,580.00	TOYOSILICONE-P HOSE quantity
TSIP-19	฿1,702.00	TOYOSILICONE-P HOSE quantity
TSIP-25	฿2,594.00	TOYOSILICONE-P HOSE quantity

Additional information

Fluids (Hoses)	Beverage / Drinkable Water, Chemicals, Food, Pharmaceutical, Powders, Pure water
Method	Pressure, Vacuum
Functionality	Anti Condensation, Anti-bend and Crush Prevention, Flexible, Heat Resistant, Low Odor, Transparent
Material	Silicon Rubber
Highest Temperature	100
Lowest Temperature	-30

Feature

Advantage 1
- It supports high-temperature fluids up to 100℃, and the inside of food grade hoses can be washed at high temperature (there are conditions regarding temperature, usage time, etc.)
- Flexible even at -30℃ and can be used as piping hose for filling and transporting
- Resistant to bending and collapse, making it ideal for excessively bent piping and driving sections such as in filling machines
- Reduces product loss and trouble due to fluid stopping due to bending and collapse
- Can be used in the suction applications up to -0.05 MPa
- Nontoxic, and also safe and secure for food / beverage use
Advantage 2
- The materials do not leach and there is no odor, providing worry-free conveyance for foods, beverages and more.
- The special PET resin used in the reinforcing material is sanitary and prevents rust, making a hose more pliable and workable than the TOYOSILICONE-S.
- Easy to cut and install because reinforcing material is resin
- Highly transparent and provides security in fluid verification.
- Reinforcing material is resin and, unlike metal reinforcement, requires no trash separation when thrown away.
Complies with various laws and regulations for safety and security
- Safe and secure due to its compliance with the Food Sanitation Act (Complying with Notice of the Ministry of Health, Labour and Welfare No. 595, 2012) ,FDA (US Food and Drug Administration) registered product (FDA DMF Type II No.25486 Registration) and corrected RoHS2 regulations

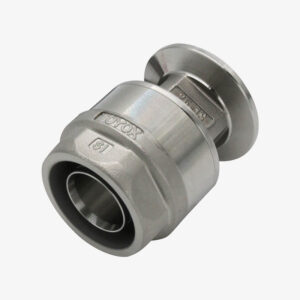

Dedicated couplings provide improved productivity and safety
- A structure that causes very little liquid accumulation. Various dedicated couplings reduce the work of disassembling and cleaning food hose piping
- Various dedicated couplings are easy to install and prevent fluid leakage and hose disconnection for safety and reassurance

Available Options

SKU	Price	Quantity
TSIP-12	฿1,094.00	TOYOSILICONE-P HOSE quantity
TSIP-15	฿1,580.00	TOYOSILICONE-P HOSE quantity
TSIP-19	฿1,702.00	TOYOSILICONE-P HOSE quantity
TSIP-25	฿2,594.00	TOYOSILICONE-P HOSE quantity

Standards Chart by Size

Temperature Range -30℃ ~ 100℃

Product Code	Inner dia. x Outer dia. (mm)	Use pressure (MPa)	Standard weight (kg/roll)	Standard length (m)	Minimum bend radius (mm)
TSIP-12	12.7×19.5	-0.05~0.2	2.1	10	80
TSIP-15	15.9×24.0	-0.05~0.2	3.1	10	105
TSIP-19	19.5×28.5	-0.05~0.2	4.1	10	140
TSIP-25	25.4×35.5	-0.05~0.2	5.9	10	195

Packaging: Boxed
Coloring: Milky green line added
